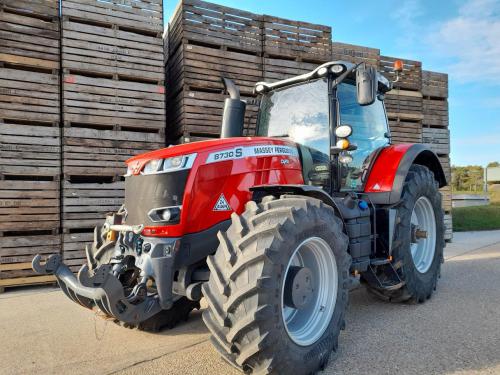

Massey Ferguson 8730 Tractors
 |
|
Power: 265 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Massey Ferguson (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Variants |
| Challenger MT655E |
| Massey Ferguson 8730 Power |
| Engine: | 265 hp
197.6 kW
|
| PTO (claimed): | 225 hp
167.8 kW
|
| Massey Ferguson 8730 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Optional OptiRide Plus hydraulic cab suspension. AgCommand ready
|
| | AUTO-GUIDE 3000
|
| Transmission: | continuously variable transmission (CVT)
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 54 gpm
204.4 lpm
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| Rear lift (at ends): | 26455 lbs
11999 kg
|
| Drawbar: | Cat. 3
|
| | Cat 3 Heavy Duty (optional)
|
| | Cat 4 (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000/1000E (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 122 inches
309 cm
|
| Weight: | 23810 lbs
10800 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 240 (twin 120A)
|
| Charging volts: | 12
|
| Battery volts: | 12
|
|
