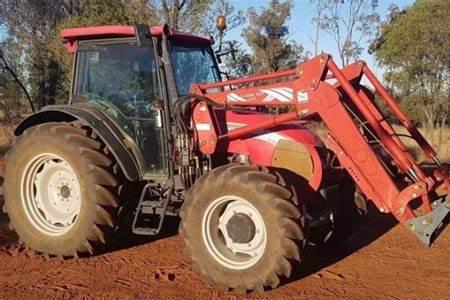

McCormick Intl C105 Max Tractors
 |
|
Power: 98 hp
Date of manufacture : 2004 - 2009 |
| Production |
| Manufacturer: | McCormick Intl (a part of Argo)
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Variants |
| C105 Max: | utility
|
| C105HC: | high-crop
|
| McCormick Intl C105 Max Power |
| Engine: | 98.6 hp
73.5 kW
|
| PTO (claimed): | 88 hp
65.6 kW
|
| McCormick Intl C105 Max Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmissions: | 12-speed
|
| | 24-speed
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2611 psi
180.0 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 13.8 gpm
52.2 lpm
|
| Total flow: | 21.7 gpm
82.1 lpm
|
| Steering flow: | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift (at ends): | 5732 lbs
2600 kg
|
| | 8157 lbs
3700 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/750
|
| | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 93.1 inches
236 cm
|
| 4WD Wheelbase: | 92.1 inches
233 cm
|
| Weight: | 6813 to 7343 pounds
|
| Front tire: | 9.00-16
|
| Rear tire: | 18.4/30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
