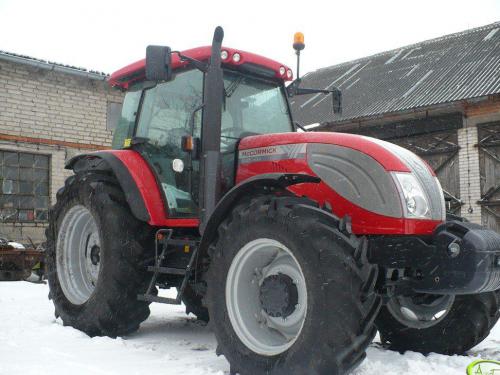

McCormick Intl G125 Max Tractors
 |
|
Power: 111 hp[P]
Date of manufacture : 2011 - 2015 |
| Production |
| Manufacturer: | McCormick Intl (a part of Argo)
|
| Type: | Row-Crop tractor
|
| McCormick Intl G125 Max Power |
| PTO (claimed): | 100 hp
74.6 kW
|
| McCormick Intl G125 Max Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Trailer brakes: | hydraulic (optional)
|
| Cab: | Two-post ROPS. Cab optional with air-conditioning.
|
| Transmission: | 36-speed mechanical shuttle
|
| Hydraulics |
| Valves: | 3 to 5
|
| Pump flow: | 18 gpm
68.1 lpm
|
| Total flow: | 28 gpm
106.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | position control
|
| Rear lift: | 15400 lbs
6985 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 12760 lbs
5787 kg
|
| Front tire: | 380/70R28
|
| Rear tire: | 480/70R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
