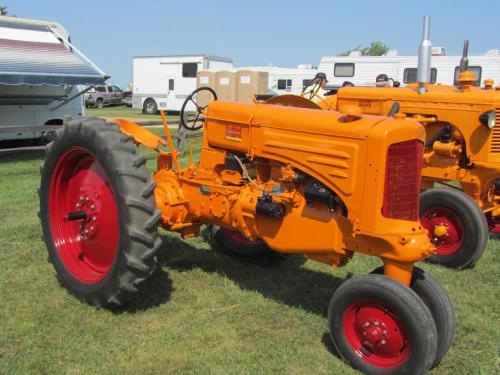

Minneapolis-Moline RTU Tractors
 |
|
Power: 25 hp[B]
Date of manufacture : 1939 - 1954 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Row-Crop tractor
|
| Factory: | Minneapolis, Minnesota, USA
|
| Total built: | 25,824
|
| Original price: | $1700 (1954)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed unsynchronized gear
|
| Photos |
| | Minneapolis-Moline RTU photos... |
| Power Take-off (PTO) |
| Rear RPM: | 560
|
| Dimensions & Tires |
| Wheelbase: | 76 inches
193 cm
|
| Weight: | 3,100 lbs
1406 kg
|
| Front tire: | 4.00-15
|
| Rear tire: | 8-36
|
| Full dimensions and tires ... |
| RTU Serial Numbers |
| Location: | Left side of tractor frame, near brake pedals.
|
photo of RTU serial number
| | 1939: | 400001
|
| 1940: | 402201
|
| 1941: | 405576
|
| 1942: | 407951
|
| 1943: | 408826
|
| 1944: | 409358
|
| 1945: | 410748
|
| 1946: | 413755
|
| 1947: | 416545
|
| 1948: | 0014800001
|
| 1949: | 0014900001
|
| 1950: | 0015000001
|
| 1951: | 00102156
|
| 1952: | 00103973
|
| 1954: | 00104824
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 12.25 inches
31 cm
|
| Width: | 6 inches
15 cm
|
| RPM: | 933
|
| Electrical |
| Charging system: | generator
|
| Battery volts: | 6
|
|
