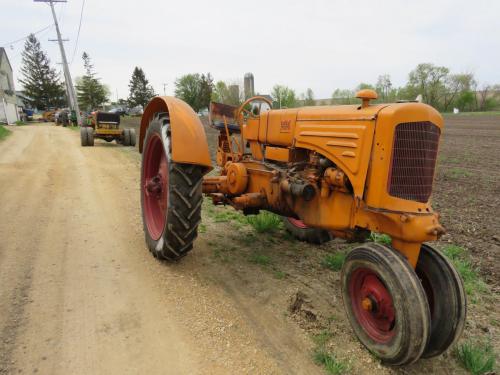

Minneapolis-Moline ZTU Tractors
 |
|
Power: 29 hp[B]
Date of manufacture : 1936 - 1948 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Row-Crop tractor
|
| Factory: | Minneapolis, Minnesota, USA
|
| Original price: | $1,500 (1948)
|
| Variants |
| ZTU: | tricycle front
|
| ZTN: | single front wheel
|
| ZTE: | adjustable wide-front
|
| ZTS: | standard front
|
| ZTI: | industrial
|
| Minneapolis-Moline ZTU Power |
| Drawbar (claimed): | 16.5 hp
12.3 kW
|
| Belt (claimed): | 26.5 hp
19.8 kW
|
| Drawbar (tested): | 26.39 hp
19.7 kW
|
| Belt (tested): | 31.14 hp
23.2 kW
|
| Minneapolis-Moline ZTU Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual worm-and-sector
|
| Brakes: | drum
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed unsynchronized gear
|
| Photos |
| | Minneapolis-Moline ZTU photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 82 inches
208 cm
|
| Weight: | 4,000 lbs
1814 kg
|
| Front tire: | 5.25x16
|
| Rear tire: | 9.00x36
|
| Full dimensions and tires ... |
| ZTU Serial Numbers |
| 1936: | 560001
|
| 1937: | 560038
|
| 1938: | 562975
|
| 1939: | 565407
|
| 1940: | 567155
|
| 1941: | 568755
|
| 1942: | 570822
|
| 1943: | 571422
|
| 1944: | 572968
|
| 1945: | 575713
|
| 1946: | 576814
|
| 1947: | 578041
|
| 1948: | 581815
|
| Final: | 585817
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 14 inches
35 cm
|
| Width: | 6.5 inches
16 cm
|
| RPM: | 790
|
| Speed: | 2,900 ft/min
883.92 meters/min
|
|
