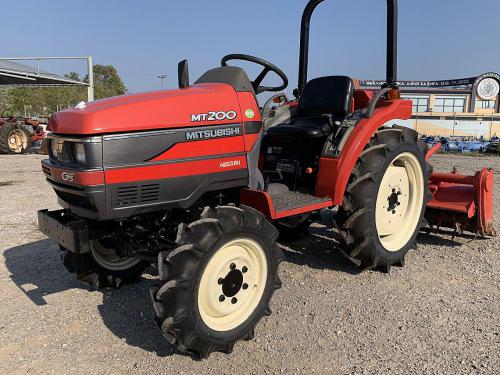

Mitsubishi MT200 Tractors
 |
|
Power: 20 hp
Date of manufacture : 2000 - 2007 |
| Production |
| Manufacturer: | Mitsubishi
|
| Type: | Compact Utility tractor
|
| Mitsubishi MT200 Power |
| Engine: | 20 hp
14.9 kW
|
| PTO (claimed): | 17.5 hp
13.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (MT200D)
|
| Steering: | hydrostatic power
|
| Brakes: | drum
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 6-speed gear
|
| | hydrostatic
|
| Hydraulics |
| Pressure: | 2134 psi
147.1 bar
|
| Pump flow: | 5.84 gpm
22.1 lpm
|
| Steering flow: | 3.41 gpm
12.9 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control, draft control optional
|
| Rear lift (at ends): | 1400 lbs
635 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540/1000 (1.375)
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 58 inches
147 cm
|
| Weight: | 2,017 lbs
914 kg
|
| Front tire: | 5.00-12
|
| Rear tire: | 9.5-16 (4WD)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
