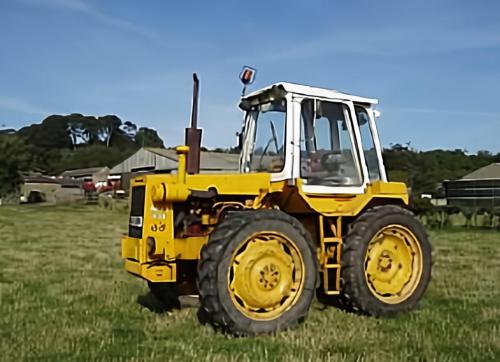

Muir-Hill 111 Tractors

Muir-Hill 111
Power: 110 hp
Date of manufacture :
1972 - 1983
Production
Manufacturer:Muir-Hill
Type:Four-wheel Drive (4WD) tractor
Factory:Manchester, England
Muir-Hill 111 Power
Engine:110 hp
82.0 kW
PTO (claimed):70 hp
52.2 kW
Muir-Hill 111 Engine
Mechanical
Chassis:4x4 4WD
Final drives:planetary
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard.
Transmission:8-speed gear
Hydraulics
Type:open center
Pressure:2600 psi
179.3 bar
Pump flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540 (1.375)
 1000 (1.375)
Engine RPM:540@1750
Dimensions & Tires
Wheelbase:75 inches
190 cm
Weight:10700 lbs
4853 kg
Front tire:13.6/12x38
Rear tire:13.6/12x38
Full dimensions and tires ...
