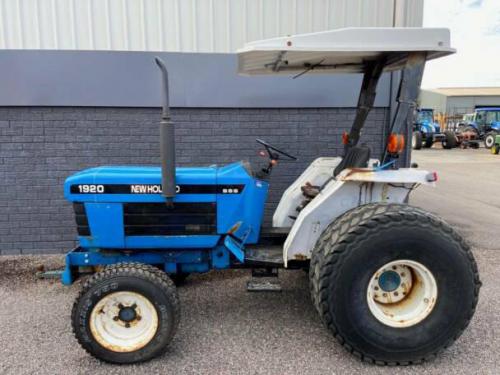

New Holland 1920 Tractors
 |
|
Power: 33 hp
Date of manufacture : 1996 - 2000 |
| Production |
| Distributor: | New Holland
|
| Manufacturer: | Shibaura
|
| Type: | Compact Utility tractor
|
| Factory: | Japan
|
| Original price: | $15,500 (2000 )
|
| New Holland 1920 Power |
| Engine (gross): | 33.3 hp
24.8 kW
|
| Engine (net): | 32 hp
23.9 kW
|
| PTO (claimed): | 28.5 hp
21.3 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 12-speed gear
|
| | 12-speed mechanical shuttle
|
| Photos |
| | New Holland 1920 photos... |
| Capacity |
| Fuel: | 9.8 gal
37.1 L
|
| Hydraulic system: | 7.7 gal
29.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.7 gal
29.1 L
|
| Pump flow: | 7.8 gpm
29.5 lpm
|
| Total flow: | 10.6 gpm
40.1 lpm
|
| Steering flow: | 2.8 gpm
10.6 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | draft control*Optional
|
| Rear lift (at 24"/610mm): | 1881 lbs
853 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| | live*Optional
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 69.9 inches
177 cm
|
| Weight: | 2849 to 3069 pounds
|
| Front tire: | 5.50-16
|
| 2WD Rear tire: | 13.6-24
|
| 1920 Serial Numbers |
| Location: | transmission, left side
|
| 1987: | UP21001
|
| 1988: | UP21710
|
| 1989: | UP24896
|
| 1990: | UP27299
|
| 1991: | UP29354
|
| 1992: | UP30817
|
| 1993: | UP32448
|
| 1994: | UP34038
|
| 1995: | UP35988
|
| 1996: | UP37672
|
| 1997: | UP39076
|
| 1998: | UP41105
|
| 1999: | UP43277
|
| 2000: | UP45272
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
