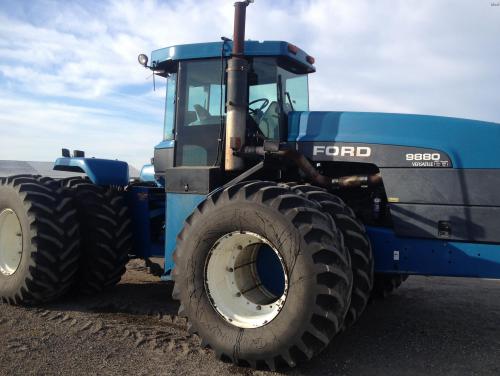

New Holland 9880 Tractors
 |
|
Power: 400 hp
Date of manufacture : 1994 - 1995 |
| Production |
| Distributor: | New Holland
|
| Manufacturer: | Versatile
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Winnigpeg, Manitoba, Canada
|
| Original price: | $140,000 (1995 )
|
| New Holland 9880 Power |
| Engine: | 400 hp
298.3 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 12-speed partially synchronized
|
| Capacity |
| Fuel: | 245 gal
927.3 L
|
| Hydraulic system: | 15.3 gal
57.9 L
|
| Hydraulics |
| Type: | closed center load-sensing
|
| Capacity: | 15.3 gal
57.9 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Pump flow: | 30 gpm
113.6 lpm
|
| Steering flow: | 30 gpm
113.6 lpm
|
| Tractor hitch |
| Rear Type: | IVN
|
| Control: | electronic position control
|
| Rear lift (at 24"/610mm): | 13036 lbs
5913 kg
|
| Dimensions & Tires |
| Wheelbase: | 133.1 inches
338 cm
|
| Weight: | 25698 lbs
11656 kg
|
| Front tire: | 20.8x38
|
| Rear tire: | 20.8x38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 130
|
| Batteries: | 3
|
| Battery CCA: | 950
|
| Battery volts: | 12
|
| Battery Group: | 31
|
|
