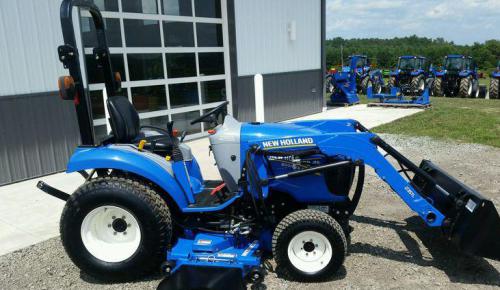

New Holland Boomer 24 Tractors
 |
|
Power: 24 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Distributor: | New Holland (a part of CNH)
|
| Manufacturer: | LS
|
| Type: | Sub-Compact Utility tractor
|
| New Holland Boomer 24 Power |
| Engine (gross): | 24 hp
17.9 kW
|
| PTO (claimed): | 16.7 hp
12.5 kW
|
| New Holland Boomer 24 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | hydrostatic power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmission: | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Valves: | 1*Optional
|
| Pump flow: | 6.7 gpm
25.4 lpm
|
| Total flow: | 9.6 gpm
36.3 lpm
|
| Steering flow: | 2.9 gpm
11.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1433 lbs
650 kg
|
| Rear Arms: | fixed link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Weight: | 1832 lbs
830 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery CCA: | 560
|
| Battery volts: | 12
|
| Battery AH: | 45
|
|
