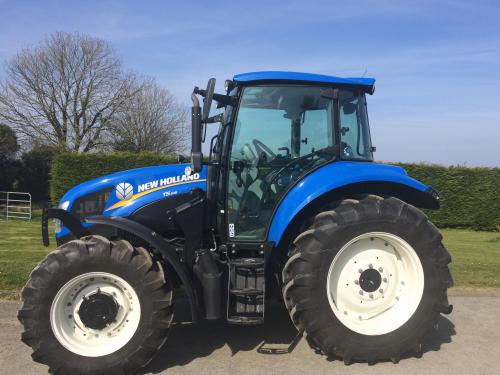

New Holland T5.105 Tractors
 |
|
Power: 106 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Variants |
| T5.105: | base model
|
| T5.115 Electro Command: | premium model
|
| New Holland T5.105 Power |
| Engine (gross): | 106 hp
79.0 kW
|
| PTO (claimed): | 91 hp
67.9 kW
|
| New Holland T5.105 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | Electro-hydraulic rear. Limited slip front.
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 12-speed power shuttle
|
| | 20-speed creeper power shuttle
|
| | 24-speed two-speed power shift
|
| Hydraulics |
| Type: | open center gear pumps
|
| Valves: | 2 to 3
|
| Pump flow: | 16.1 gpm
60.9 lpm
|
| | 21.1 gpm
79.9 lpm (optional)
|
| Steering flow: | 10 gpm
37.9 lpm
|
| | 11.4 gpm
43.1 lpm (optional)
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic draft control
|
| Rear lift (at 24"/610mm): | 6392 lbs
2899 kg
|
| | 10452 lbs
4741 kg (optional)
|
| Rear Arms: | flexible lower link ends with telescopic stabilizers
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/1000
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 92.5 inches
234 cm
|
| Weight: | 9370 lbs
4250 kg
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
