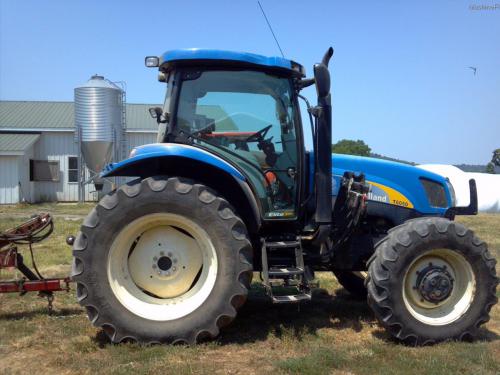

New Holland T6050 Elite Tractors
 |
|
Power: 125 hp
Date of manufacture : 2007 - 2012 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Variants |
| T6050 Delta: | economy
|
| T6050 Plus: | mid-level
|
| T6050 Elite: | premium
|
| New Holland T6050 Elite Power |
| Engine (gross): | 125 hp
93.2 kW
|
| Engine (max): | 136 hp
101.4 kW
|
| PTO (claimed): | 105 hp
78.3 kW
|
| Drawbar (tested): | 90.9 hp
67.8 kW
|
| PTO (tested): | 124.6 hp
92.9 kW
|
| New Holland T6050 Elite Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.
|
| Transmissions: | 16-speed partial power shift
|
| | 18-speed
|
| Capacity |
| Fuel: | 79.3 gal
300.2 L
|
| Hydraulic system: | 18.5 gal
70.0 L
|
| Hydraulics |
| Type: | closed center load sensing
|
| Capacity: | 18.5 gal
70.0 L
|
| Valves: | 2 to 4
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 43.6 gpm
165.0 lpm
|
| Steering flow: | 17.1 gpm
64.7 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Control: | electronic lower-link draft control
|
| Rear lift: | 12,185 lbs
5527 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 104.4 inches
265 cm
|
| | 95.3 inches
242 cm (Terraglide axle)
|
| | 99.2 inches
251 cm (SuperSteer axle)
|
| Weight: | 11836 to 13260 pounds
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Charging volts: | 12
|
| Battery CCA: | 1300
|
| Battery volts: | 12
|
|
