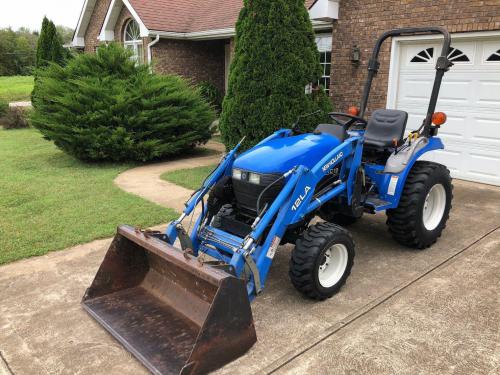

New Holland TC18 Tractors
 |
|
Power: 18 hp
Date of manufacture : 1999 - 2003 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Compact Utility tractor
|
| Original price: | $9000 (2000 )
|
| New Holland TC18 Power |
| Engine (gross): | 18.5 hp
13.8 kW
|
| Gear PTO (claimed): | 15 hp
11.2 kW
|
| Hydro PTO (claimed): | 14 hp
10.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | power
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 6-speed gear
|
| | hydrostatic
|
| Photos |
| | New Holland TC18 photos... |
| Hydraulics |
| Valves: | 2 (optional)
|
| Pump flow: | 4 gpm
15.1 lpm
|
| Total flow: | 6.75 gpm
25.5 lpm
|
| Steering flow: | 2.75 gpm
10.4 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at 24"/610mm): | 1265 lbs
573 kg
|
| Power Take-off (PTO) |
| Gear Rear PTO: | transmission
|
| Hydro Rear PTO: | live
|
| Rear RPM: | 540
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 55.3 inches
140 cm
|
| Weight: | 1357 to 1438 pounds
|
| Front tire: | 4.00-12
|
| Rear tire: | 8.00-16
|
| TC18 Serial Numbers |
| Location: | Serial number plate on the left side of the Boomer TC18 tractor frame, above the front axle.
|
photo of TC18 serial number
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
