New Holland TC35 Tractors
 |
|
Power: 35 hp
Date of manufacture : 2000 - 2003 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Compact Utility tractor
|
| Variants |
| TC35: | base model
|
| TC35D: | deluxe
|
| New Holland TC35 Power |
| Engine (gross): | 35 hp
26.1 kW
|
| Gear PTO (claimed): | 29.6 hp
22.1 kW
|
| Hydro PTO (claimed): | 29.1 hp
21.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Two-post ROPs.
|
| Transmissions: | 12-speed synch shuttle
|
| | hydrostatic
|
| Photos |

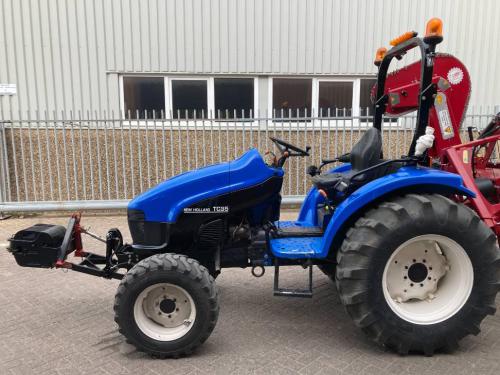

| | New Holland TC35 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2275 psi
156.9 bar
|
| Pump flow: | 9.8 gpm
37.1 lpm
|
| Total flow: | 14.9 gpm
56.4 lpm
|
| Steering flow: | 5.1 gpm
19.3 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at 24"/610mm): | 2025 lbs
918 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid PTO: | optional
|
| Dimensions & Tires |
| Wheelbase: | 73.5 inches
186 cm
|
| SuperSteer Wheelbase: | 81 inches
205 cm
|
| Weight: | 2947 to 3421 pounds
|
| Front tire: | 5.50x16
|
| Rear tire: | 13.6x24
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
