New Holland TG210 Tractors

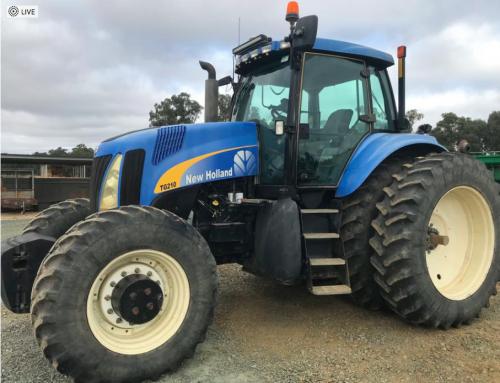

New Holland TG210
Power: 210 hp
Date of manufacture :
2003 - 2006
Production
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
New Holland TG210 Power
Engine:210 hp
156.6 kW
PTO (claimed):170 hp
126.8 kW
Drawbar (tested):146.80 hp
109.5 kW
PTO (tested):195.30 hp
145.6 kW
New Holland TG210 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:18-speed full power shift
 24-speed creeper
Hydraulics
Type:closed center load sensing
Valves:3 to 5
Pump flow:38.6 gpm
146.1 lpm
 68 gpm
257.4 lpm *With optional Mega Flow
Tractor hitch
Rear Type:III/IIIN
Control:position and electronic draft control
Rear lift (at 24"/610mm):13520 lbs
6132 kg
 15970 lbs
7243 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
 540/1000*Optional
Dimensions & Tires
Weight:20455 lbs
9278 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:135
Batteries:2
Battery CCA:1000
Battery volts:12
Battery Group:31
