New Holland lawn tractors LS35 Tractors

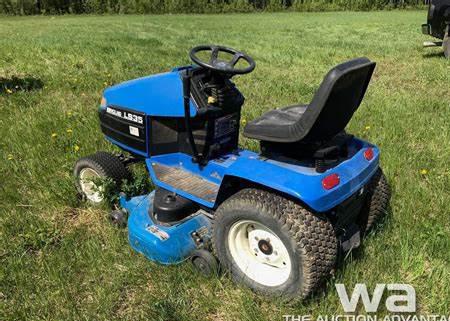

New Holland lawn tractors LS35
Power: 15 hp
Date of manufacture :
1996 - 2003
Production
DistributorNew Holland
ManufacturerToro
New Holland LS35 Transmission
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station with adjustable seat.
Photos
New Holland LS35 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchelectro-magnetic
Dimensions & Tires
Wheelbase49.5 inches
125 cm
Weight510 lbs
231 kg
Front tire16x6.50-8
Rear tire23x9.50-12
Full dimensions and tires ...
LS35 Serial Numbers
LS35 Serial Location
Serial number decal located on the fender deck under the tractor's seat.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA200
Battery volts12
