| Production |
| Manufacturer: | Oliver
|
| Type: | Row-Crop tractor
|
| Factory: | Charles City, Iowa, USA
|
| Variants |
| Row-Crop: | tricycle front
|
| Wheatland: | standard-front axle
|
| High-Clearance: | extended ground clearance
|
| Oliver 1600 Power |
| Gas Drawbar (claimed): | 51.5 hp
38.4 kW
|
| LP-gas Drawbar (claimed): | 47.5 hp
35.4 kW
|
| Gas PTO (claimed): | 60 hp
44.7 kW
|
| LP-gas PTO (claimed): | 56 hp
41.8 kW
|
| Plows: | 4-5
|
| Drawbar (tested): | 47.09 hp
35.1 kW
|
| PTO (tested): | 57.95 hp
43.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| | power-assist optional
|
| Brakes: | differential mechanical dry disc
|
| Cab: | Open operator station.
|
| Transmissions: | 6-speed gear
|
| | 12-speed partial power shift
|

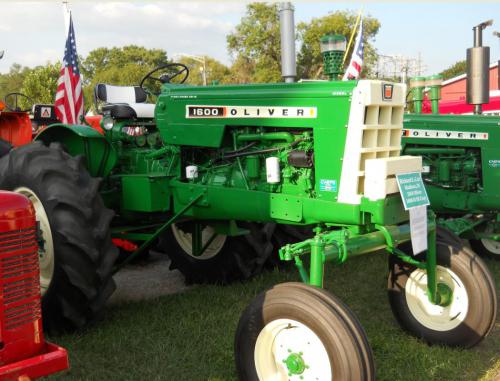

| Photos |
| | Oliver 1600 photos... |
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105.6 inches
268 cm
|
| Weight: | 7,400 lbs
3356 kg
|
| Front tire: | 6.50-16
|
| Rear tire: | 16.9-34
|
| Full dimensions and tires ... |
| 1600 Serial Numbers |
| Location: | Serial plate on instrument panel.
|
| 1962: | 124-420 (A)
|
| 1963: | 127-044 (A)
|
| 1963: | 137-613 (B)
|
| 1964: | 140-723 (B)
|
| Final: | 147-568 (B)
|
how to read serial numbers...
| |
