Renault 103-12 TX Tractors

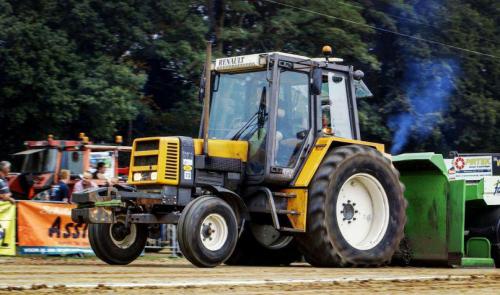

Renault 103-12 TX
Power: 91 hp
Date of manufacture :
1981 - 1986
Production
Manufacturer:Renault
Type:Row-Crop tractor
Variants
103-14:4WD
Renault 103-12 TX Power
Engine:91.2 hp
68.0 kW
PTO (claimed):87.3 hp
65.1 kW
Renault 103-12 TX Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:hydraulic dry disc
Cab:Cab standard with heat.
Transmissions:12-speed synchronized
 16-speed creeper
Hydraulics
Pressure:2611 psi
180.0 bar
Total flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:9041 lbs
4100 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:organic
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:97.6 inches
247 cm
Weight:8996 lbs
4080 kg
Front tire:9.00-16
Rear tire:16.9-38
Full dimensions and tires ...
