SAME Explorer 90 Tractors

SAME Explorer 90
Power: 90 hp
Date of manufacture :
1986 - 1990
Production
Manufacturer:SAME
Type:Utility tractor
SAME Explorer 90 Power
Engine:90 hp
67.1 kW
SAME Explorer 90 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Cab:Cab with optional heater.
Transmission:20-speed

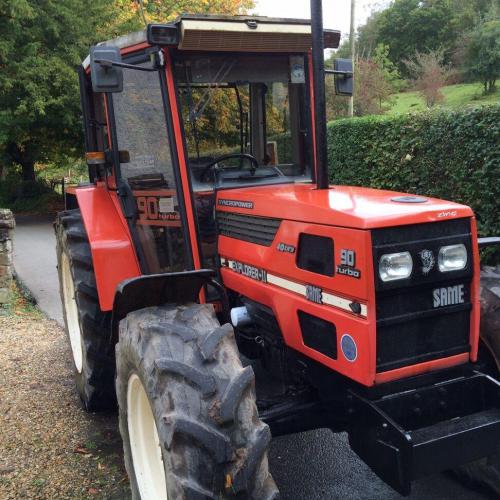

Photos
SAME Explorer 90 photos...
Hydraulics
Pump flow:9.2 gpm
34.8 lpm
Tractor hitch
Rear Type:II
Rear lift:7563 lbs
3430 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:95.3 inches
242 cm
Weight:7563 lbs
3430 kg
Front tire:7.50-18
Rear tire:16.9-34
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
