Schluter Compact 950 V 6 Tractors

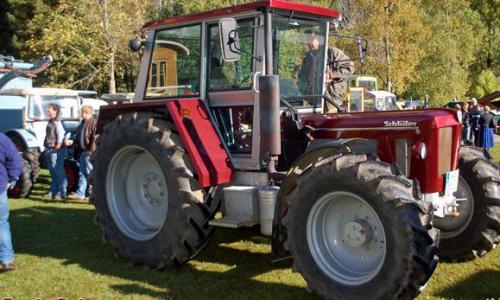

Schluter Compact 950 V 6
Power: 90 hp
Date of manufacture :
1982 - 1990
Production
Manufacturer:Schluter
Schluter Compact 950 V 6 Power
Engine:90 hp
67.1 kW
Schluter Compact 950 V 6 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:drum
Transmission:12-speed
Photos
Schluter Compact 950 V 6 photos...
Hydraulics
Total flow:10.0 gpm
37.9 lpm
 14.5 gpm
54.9 lpm (optional)
Tractor hitch
Rear lift:7,938 lbs
3600 kg
 9,922.5 lbs
4500 kg (optional)
 8,599.5 lbs
3900 kg (after 1984)
 11,466 lbs
5200 kg (optional after 1984)
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:94.5 inches
240 cm
Weight:9,702 lbs
4400 kg
Front tire:12.4R28
Rear tire:18.4R38
Full dimensions and tires ...
