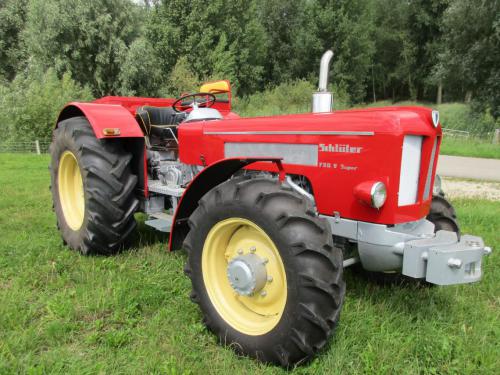

Schluter Super 750 Tractors
 |
|
Power: 75 hp
Date of manufacture : 1966 - 1969 |
| Production |
| Manufacturer: | Schluter
|
| Schluter Super 750 Power |
| Engine: | 75 hp
55.9 kW
|
| Schluter Super 750 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD optional
|
| Steering: | mechanical/power assist
|
| Brakes: | drum
|
| Transmission: | 12-speed
|
| Hydraulics |
| Total flow: | 6.9 gpm
26.1 lpm
|
| Tractor hitch |
| Rear lift: | 5843 lbs
2650 kg
|
| | 6,174 lbs
2800 kg (optional)
|
| Power Take-off (PTO) |
| Rear RPM: | 540/975
|
| Dimensions & Tires |
| Wheelbase: | 103.5 inches
262 cm
|
| Weight: | 7629 to 8754 pounds
|
| Front tire: | 6.50-20
|
| Rear tire: | 13.6-36
|
| Full dimensions and tires ... | |
