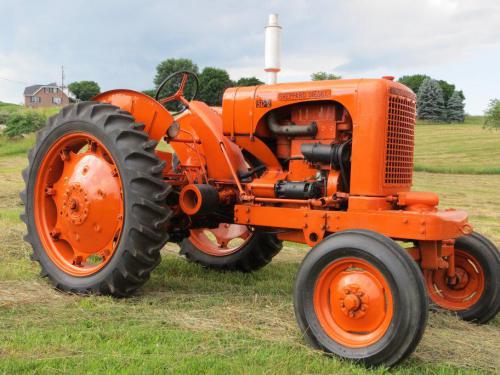

Sheppard Diesel SD-2 Tractors
 |
|
Power: 24 hp
Date of manufacture : 1949 - 1956 |
| Production |
| Manufacturer: | Sheppard Diesel
|
| Type: | Row-Crop tractor
|
| Factory: | Hanover, Pennsylvania, USA
|
| Total built: | 257
|
| Variants |
| SD-2: | row-crop
|
| SDO-2: | orchard
|
| SDG-2: | grove
|
| Sheppard Diesel SD-2 Power |
| Engine: | 24 hp
17.9 kW
|
| Plows: | 2
|
| Sheppard Diesel SD-2 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | spur gear
|
| Steering: | manual
|
| Brakes: | mechanical drum
|
| Cab: | Open operator station.
|
| Transmissions: | 4-speed gear
|
| | 8-speed
|
| Photos |
| | Sheppard Diesel SD-2 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 85 inches
215 cm
|
| Weight: | 4008 lbs
1818 kg
|
| Front tire: | 6.00-16
|
| Rear tire: | 10x38
|
| Full dimensions and tires ... |
| Belt Pulley |
| Diameter: | 8.25 inches
20 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 1458
|
| Speed: | 3048 ft/min
929.03 meters/min
|
|
