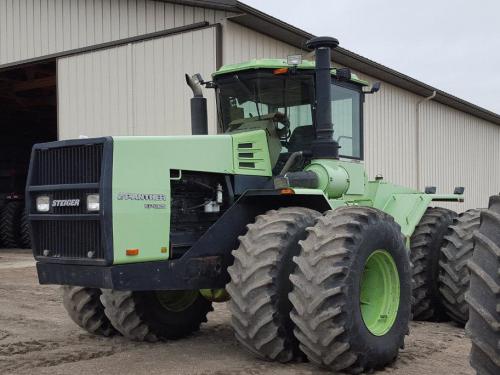

Steiger Panther KP-1325 Tractors
 |
|
Power: 325 hp
Date of manufacture : 1982 - 1985 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $125,000 (1985 )
|
| Variants |
| CP-1325: | Caterpillar 325HP
|
| KP-1325: | Cummins 325HP
|
| CP-1360: | Caterpillar 360HP
|
| KP-1360: | Cummins 360HP
|
| CP-1400: | Caterpillar 400HP
|
| KP-1400: | Cummins 400HP
|
| Steiger Panther KP-1325 Power |
| Engine: | 325 hp
242.4 kW
|
| Drawbar (tested): | 264.44 hp
197.2 kW
|
| PTO (tested): | 301.21 hp
224.6 kW
|
| Steiger Panther KP-1325 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 12-speed full power shift
|
| Photos |
| | Steiger Panther KP-1325 photos... |
| Hydraulics |
| Type: | closed center
|
| Valves: | 3
|
| Tractor hitch |
| Rear Type: | III/IV
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 141.5 inches
359 cm
|
| Weight: | 35300 lbs
16012 kg
|
| Front tire: | 23.1-34
|
| Rear tire: | 23.1-34
|
| Full dimensions and tires ... |
| Panther KP-1325 Serial Numbers |
| 1982: | P04-00501
|
| 1983: | P04-02501
|
| 1984: | P05-03001
|
| 1985: | P04-05001
|
how to read serial numbers...
| |
