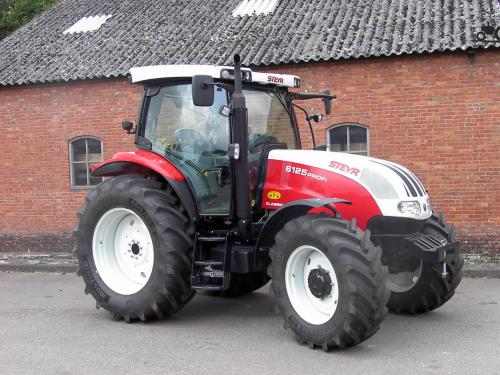

Steyr 6125 Profi Tractors
 |
|
Power: 125 hp
Date of manufacture : 2003 - 2006 |
| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|
| Steyr 6125 Profi Power |
| Engine: | 125 hp
93.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | SK3 cab standard with air-conditioning.
|
| Transmissions: | 24-speed
|
| | 48-speed
|
| | 16-speed
|
| Hydraulics |
| Pressure: | 3046 psi
210.0 bar
|
| Rear valves: | 4
|
| Front valves: | 2
|
| Total flow: | 21.1 gpm
79.9 lpm
|
| | 29.85 gpm
113.0 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 17,340 lbs
7865 kg
|
| Front lift: | 6,876 lbs
3118 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/540E/1000
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 104.8 inches
266 cm
|
| Weight: | 11,790 lbs
5347 kg
|
| Front tire: | 14.9R28
|
| Rear tire: | 18.4R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
|
