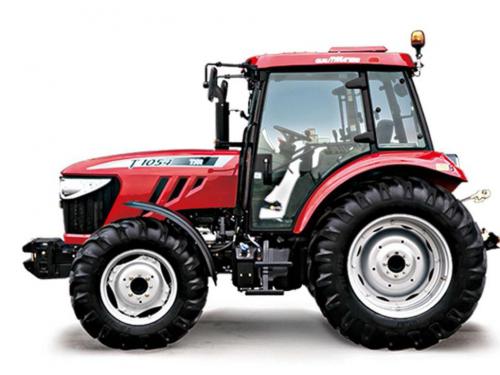

TYM T1054 Tractors

TYM T1054
Power: 104 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:TYM
Type:Utility tractor
Variants
T1054 SC:12-speed
T1054 SP:32-speed
TYM T1054 Power
Engine (gross):104.6 hp
78.0 kW
PTO (claimed):95.5 hp
71.2 kW
TYM T1054 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:32-speed two-speed power shift
 12-speed power shuttle
Hydraulics
Type:open center
Valves:3
Pump flow:15.6 gpm
59.0 lpm
Total flow:22.7 gpm
85.9 lpm
Steering flow:7.1 gpm
26.9 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):6860 lbs
3111 kg
 9568 lbs
4340 kg *Optional
Rear lift (at 24"/610mm):5490 lbs
2490 kg
 6490 lbs
2943 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000 (1.375)
Dimensions & Tires
Weight:8688 lbs
3940 kg
Front tire:13.6-24
Rear tire:16.9-34
Full dimensions and tires ...
