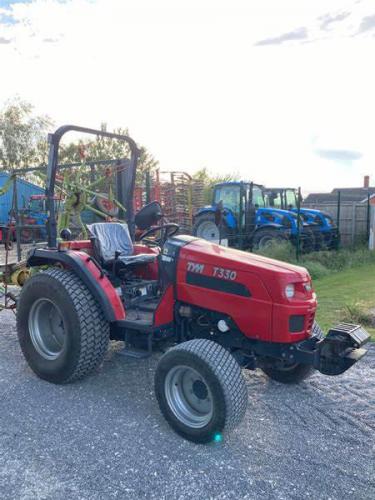

TYM T330 Tractors

TYM T330
Power: 31 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:TYM
Type:Compact Utility tractor
TYM T330 Power
Engine:31 hp
23.1 kW
PTO (claimed):26.5 hp
19.8 kW
TYM T330 Engine
Mechanical
Steering:hydrostatic power
Brakes:wet disc
Transmissions:12-speed sync shuttle
 hydrostatic
Capacity
Fuel:8.2 gal
31.0 L
Hydraulic system:8.5 gal
32.2 L
Hydraulics
Capacity:8.5 gal
32.2 L
Valves:2
Pump flow:6.3 gpm
23.8 lpm
Total flow:9.7 gpm
36.7 lpm
 10.85 gpm
41.1 lpm (hydro)
Tractor hitch
Rear Type:I
Rear lift (at ends):2,078 lbs
942 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Engine RPM:540@2541
Dimensions & Tires
Wheelbase:64 inches
162 cm
Weight:3,000 lbs
1360 kg
Front tire:7-16
Rear tire:11.2-24
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:50
