Power: 50 hp Date of manufacture : 2006 - 2015

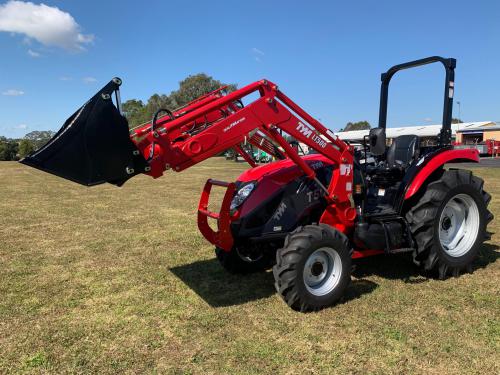

Production Manufacturer: TYM Type: Compact Utility tractor TYM T503 Power Engine (gross): 50.7 hp 37.8 kW PTO (claimed): 39.8 hp 29.7 kW TYM T503 Engine Mechanical Chassis: 4x4 MFWD 4WD Steering: power Brakes: wet disc Cab: Two-post ROPS. Cab optional. Transmissions: 16-speed sync shuttle   hydrostatic Photos TYM T503 photos... Capacity Fuel: 17 gal 64.3 L Hydraulic system: 9.2 gal 34.8 L Front axle: 10.5 qts 9.9 L Hydraulics Type: dual gear pump Capacity: 9.2 gal 34.8 L Valves: 2 Pump flow: 9.5 gpm 36.0 lpm Total flow: 14.5 gpm 54.9 lpm Steering flow: 5.0 gpm 18.9 lpm Tractor hitch Rear Type: 1 Control: position and draft control Rear lift (at ends): 2875 lbs 1304 kg Rear lift (at 24"/610mm): 2105 lbs 954 kg Power Take-off (PTO) Rear PTO: independent Clutch: electro-hydraulic Rear RPM: 540 Dimensions & Tires Wheelbase: 76.2 inches 193 cm Weight: 4140 to 4559 pounds Front tire: 8.0-16 Rear tire: 13.6-24 T503 Serial Numbers Location: Serial number plate on the front right of the tractor frame, above the front axle. Electrical Ground: negative Charging system: alternator Charging amps: 65 Charging volts: 12 Battery volts: 12
