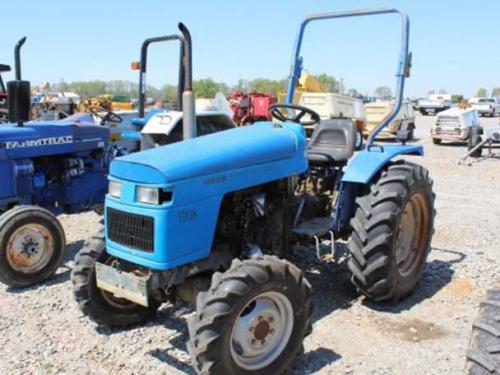

Terraplane TD100 Tractors
 |
|
Power: 98 hp
Date of manufacture : 2002 - 2004 |
| Production |
| Distributor: | Terraplane
|
| Manufacturer: | Foton
|
| Type: | Utility tractor
|
| Factory: | China
|
| Terraplane TD100 Power |
| Engine (gross): | 98.5 hp
73.5 kW
|
| PTO (claimed): | 96.6 hp
72.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmission: | 18-speed gear
|
| Hydraulics |
| Pressure: | 2756 psi
190.0 bar
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Steering flow: | 10.36 gpm
39.2 lpm
|
| Steering press.: | 1450 psi
100.0 bar
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 5620 lbs
2549 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 94 inches
238 cm
|
| Weight: | 10337 lbs
4688 kg
|
| Front tire: | 12.4-28
|
| Rear tire: | 16.9-38
|
| Full dimensions and tires ... | |
