Navigation: Home > Ursus > 932

Ursus 932 Tractors

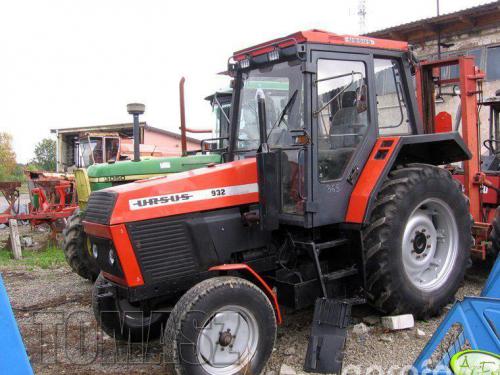

Ursus 932
Power: 78 hp
Date of manufacture :
1991 - 2003
Production
Manufacturer:Ursus
Factory:Warsaw, Poland
Variants
932:2WD
934:4WD
Ursus 932 Power
Engine:78.9 hp
58.8 kW
PTO (claimed):68.1 hp
50.8 kW
Ursus 932 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:power
Brakes:dry disc
Cab:Cab standard with heat.
Transmission:16-speed two-speed power shift
Capacity
Fuel:23.8 gal
90.1 L
 34.3 gal
129.8 L *With optional 40L secondary fuel tank.
Hydraulic system:12.15 gal
46.0 L
Hydraulics
Capacity:12.15 gal
46.0 L
Pump flow:10.8 gpm
40.9 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:9094 lbs
4125 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic
Rear RPM:540/1000 (1.375)
Engine RPM:540@1890
1000@1920
Dimensions & Tires
Wheelbase:94 inches
238 cm
Weight:9480 lbs
4300 kg
Front tire:7.50-20
Rear tire:18.4-34
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:55
Charging volts:12
Batteries:2
Battery volts:12
Battery AH:135
