| Production |
| Manufacturer: | Versatile
|
| Factory: | Winnipeg, Manitoba, Canada
|
| Original price: | $41,000 (1985 )
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with 180-degree console rotation.
|
| Transmission: | hydrostatic
|
| Photos |

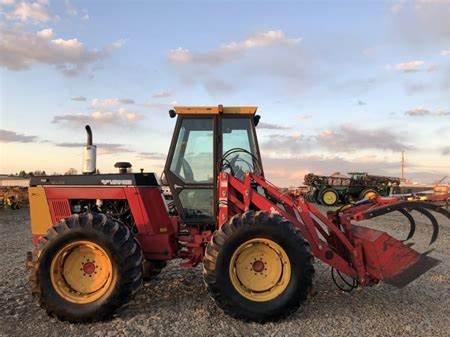

| | Versatile 256 photos... |
| Capacity |
| Fuel: | 39 gal
147.6 L
|
| Hydraulic system: | 8.5 gal
32.2 L
|
| Hydraulics |
| Type: | closed center load sensing
|
| Capacity: | 8.5 gal
32.2 L
|
| Pressure: | 2800 psi
193.1 bar
|
| Rear valves: | 3
|
| Front valves: | 2*Optional
|
| Pump flow: | 23 gpm
87.1 lpm
|
| Steering flow: | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type: | II/I*Optional
|
| Control: | position control
|
| Rear lift (at 24"/610mm): | 4400 lbs
1995 kg
|
| Front Hitch: | II/I*Optional
|
| Front lift (at ends): | 3266 lbs
1481 kg
|
| Front lift (at 24"/610mm): | 2000 lbs
907 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2500
1000@2500
|
| Front PTO: | optional
|
| Front RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 86 inches
218 cm
|
| Weight: | 8700 to 11650 pounds
|
| Front tire: | 14.9x28
|
| Rear tire: | 14.9x28
|
| 256 Serial Numbers |
| 1984: | 205101
|
| 1985: | 253500
|
| Final: | 253861
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Batteries: | 2
|
| Battery CCA: | 580
|
| Battery volts: | 12
|
|
