Navigation: Home > Versatile > 305

Versatile 305 Tractors

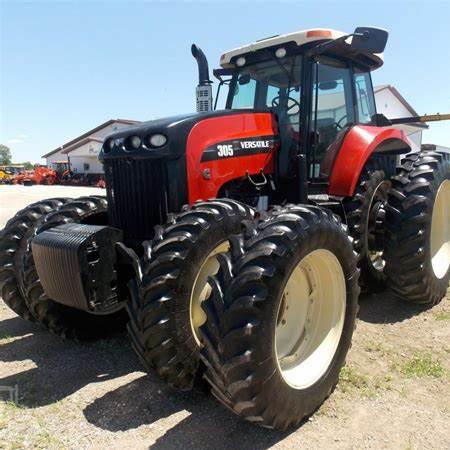

Versatile 305
Power: 305 hp
Date of manufacture :
2012 - 2014
Production
Manufacturer:Versatile (a part of Rostselmash)
Type:Row-Crop tractor
Factory:Winnipeg, Manitoba, Canada
Versatile 305 Power
Engine:305 hp
227.4 kW
PTO (claimed):245 hp
182.7 kW
Drawbar (tested):210.50 hp
157.0 kW
PTO (tested):314.39 hp
234.4 kW
Versatile 305 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Steering:power
Cab:Cab standard with air-conditioning.
Transmission:16-speed full power shift
Capacity
Fuel:110 gal
416.4 L
Hydraulic system:31 gal
117.3 L
Hydraulics
Type:closed center load sensing (CCLS)
Capacity:31 gal
117.3 L
Pressure:2900 psi
200.0 bar
Valves:3 or 4
Pump flow:30 gpm
113.6 lpm
 55 gpm
208.2 lpm (optional)
Tractor hitch
Rear Type:III
Control:electronic draft control
Rear lift:15000 lbs
6804 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 1000 (1.375 optional)
Dimensions & Tires
Wheelbase:121 inches
307 cm
 125 inches
317 cm (UltaSteer)
Weight:19150 to 20050 pounds
Electrical
Ground:negative
Charging system:alternator
Charging amps:160
 180 (optional)
Charging volts:12
Batteries:2
Battery CCA:950
Battery volts:12
