Production |
Manufacturer: | White
|
Type: | Row-Crop tractor
|
Original price: | $42,000 (1982 )
|
White 2-135 Power |
PTO (claimed): | 135 hp 100.7 kW
|
Drawbar (tested): | 113.67 hp 84.8 kW
|
PTO (tested): | 137.64 hp 102.6 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Final drives: | inboard planetary
|
Steering: | power
|
Brakes: | independent hydraulic wet disc
|
Cab: | Cab standard with air-conditioning. Optional radio, cassette, and 8-track.
|
Transmission: | 18-speed three-speed power shift
|
Photos |

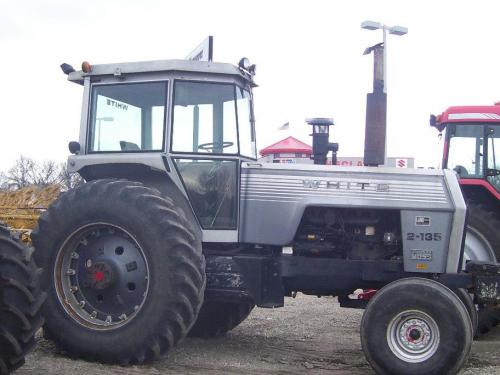

| White 2-135 photos... |
Capacity |
Fuel: | 74 gal 280.1 L
|
Hydraulic system: | 23 gal 87.1 L
|
Hydraulics |
Type: | closed center
|
Capacity: | 23 gal 87.1 L
|
Pressure: | 2250 psi 155.1 bar
|
Valves: | 2 or 3
|
Total flow: | 21 gpm 79.5 lpm
|
Tractor hitch |
Rear Type: | III/II
|
Rear lift (at 24"/610mm): | 6,400 lbs 2903 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 1000
|
| 540/1000*Optional
|
Dimensions & Tires |
2WD Wheelbase: | 113 inches 287 cm
|
4WD Wheelbase: | 90 inches 228 cm
|
Weight: | 14000 to 14900 pounds
|
Front tire: | 10.00-16
|
2WD Rear tire: | 18.4-38
|
2-135 Serial Numbers |
Location: | Serial number on the bottom left of the instrument console, above the step.
|
photo of 2-135 serial number
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 55
|
Batteries: | 2
|
Battery volts: | 12
|
|
