| Production |
| Manufacturer: | White (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factories: | Coldwater, Ohio, USA
|
| | Beauvais, France
|
| Original price: | $110,000 (1999)
|
| White 8610 Power |
| PTO (claimed): | 180 hp
134.2 kW
|
| Drawbar (tested): | 160.22 hp
119.5 kW
|
| PTO (tested): | 184.29 hp
137.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard.
|
| Transmission: | 18-speed full power shift
|

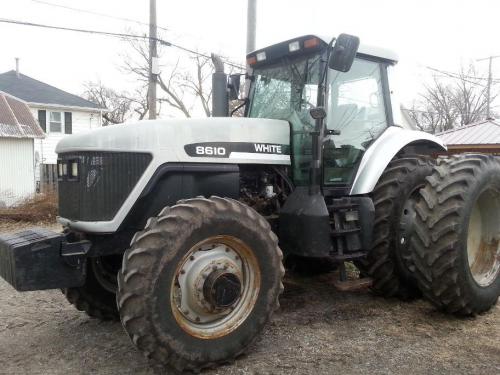

| Photos |
| | White 8610 photos... |
| Hydraulics |
| Type: | closed center pressure-flow compensated (PFC)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift (at 24"/610mm): | 14,000 lbs
6350 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 121 inches
307 cm
|
| Weight: | 18500 to 19485 pounds
|
| Front tire: | 14.9-28
|
| Rear tire: | 18.4R38
|
| Full dimensions and tires ... |
| 8610 Serial Numbers |
| 1998: | CG001001
|
| 1999: | CH001001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
