Yanmar AF224 Tractors

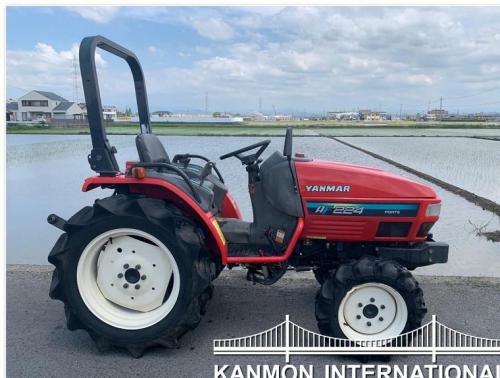

Yanmar AF224
Power: 24 hp
Date of manufacture :
2002 - 2004
Production
Manufacturer:Yanmar
Yanmar AF224 Power
Engine:24 hp
17.9 kW
Yanmar AF224 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:manual
Steering:power*Optional
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:8-speed
Tractor hitch
Rear Type:0
Control:position control
Power Take-off (PTO)
Clutch:dry disc
Rear RPM:547/716/1210
Dimensions & Tires
Wheelbase:55.9 inches
141 cm
Weight:1940 lbs
879 kg
Front tire:6-14
Rear tire:9.5-22
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
Battery AH:55
