Zetor 12050 Tractors

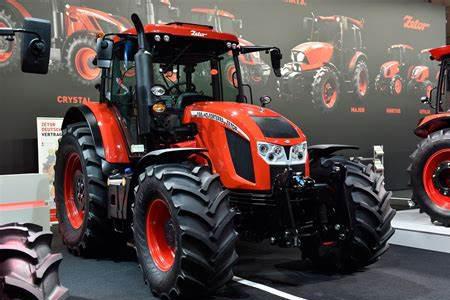

Zetor 12050
Power: 120 hp
Date of manufacture :
2008 - 2011
Production
Manufacturer:Zetor
Factory:Brno, Czech Republic
Zetor 12050 Power
Engine (gross):120 hp
89.5 kW
Engine (net):114 hp
85.0 kW
PTO (claimed):104 hp
77.6 kW
Zetor 12050 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
 limited-slip front
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-condtioning.
Transmission:24-speed three-speed power shift
Hydraulics
Type:open center
Pressure:2900 psi
200.0 bar
Valves:3
SCV flow:14 gpm
53.0 lpm
Total flow:20 gpm
75.7 lpm
Steering flow:6 gpm
22.7 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at ends):7600 lbs
3447 kg
 9150 lbs
4150 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:96 inches
243 cm
Weight:9045 lbs
4102 kg
Front tire:13.6R24
Rear tire:18.4R34
Electrical
Ground:negative
Charging system:alternator
Charging amps:95
Charging volts:12
Battery CCA:950
Battery volts:12
