Zetor 5511 Tractors

Zetor 5511
Power: 56 hp
Date of manufacture :
1968 - 1972
Production
Manufacturer:Zetor
Factory:Brno, Czechoslovakia
Variants
5511:2WD open
5545:4WD open
5611:2WD cab
Zetor 5511 Power
Engine:56 hp
41.8 kW
Drawbar (claimed):48 hp
35.8 kW
PTO (claimed):53.9 hp
40.2 kW
Zetor 5511 Engine
Mechanical
Chassis:4x2 2WD
Final drives:spur gear
Differential lock:mechanical rear
Steering:manual
Steering:power (5611)
Brakes:hydraulic drum
Cab:Open operator station.
Transmission:10-speed gear

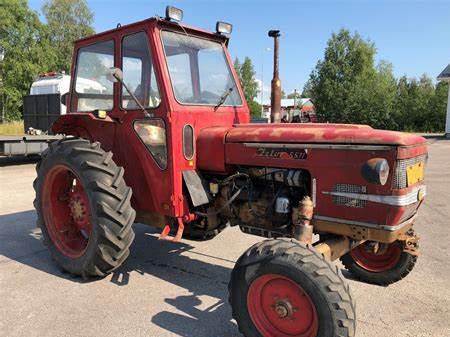

Photos
Zetor 5511 photos...
Hydraulics
Type:open center
Pressure:2134 psi
147.1 bar
Valves:1
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at ends):3080 lbs
1397 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@2000
Dimensions & Tires
Wheelbase:89 inches
226 cm
Weight:4950 lbs
2245 kg
Front tire:6.00-18
Rear tire:13-28
Full dimensions and tires ...
