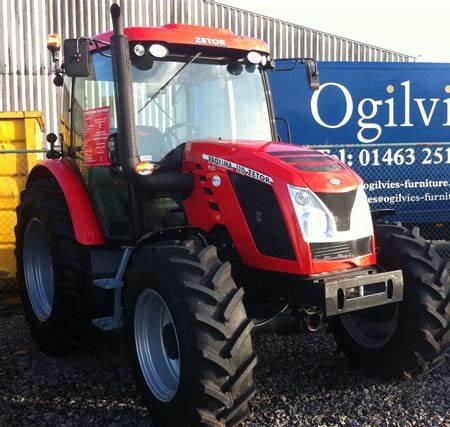

Zetor Proxima Plus 110 Tractors
 |
|
Power: 107 hp
Date of manufacture : 2010 - 2016 |
| Production |
| Manufacturer: | Zetor
|
| Type: | Utility tractor
|
| Factory: | Brno, Czech Republic
|
| Zetor Proxima Plus 110 Power |
| Engine (net): | 107 hp
79.8 kW
|
| Zetor Proxima Plus 110 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-pneumatic
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | pneumatic
|
| | hydraulic*Optional
|
| Cab: | Cab standard with optional air-conditioning.
|
| Transmission: | 16-speed two-speed power shift
|
| Hydraulics |
| Pressure: | 2756 psi
190.0 bar
|
| Valves: | 3
|
| Total flow: | 13.2 gpm
50.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position control and mechanical top-link draft sensing
|
| Rear lift: | 9442 lbs
4282 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540/1000
|
| | 540/540E
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 91.7 inches
232 cm
|
| Weight: | 8245 lbs
3739 kg
|
| Front tire: | 11.2-24
|
| Rear tire: | 16.9-30
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
|
