Power: 216 hp[P] Date of manufacture : 1994 - 1995

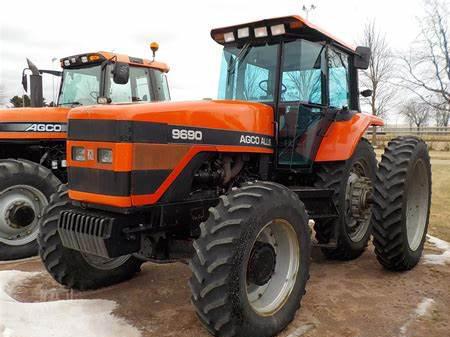

Production Manufacturer: AGCO Allis (a part of AGCO) Type: Row-Crop tractor Original price: $107,000 (1995 ) AGCO Allis 9690 Power PTO (claimed): 195 hp 145.4 kW Drawbar (tested): 170.56 hp 127.2 kW PTO (tested): 205.49 hp 153.2 kW AGCO Allis 9690 Engine Mechanical Chassis: 4x4 MFWD 4WD Final drives: inboard planetary Differential lock: electro-hydraulic Steering: power Brakes: hydraulic wet disc Cab: Cab standard. Transmission: 18-speed full power shift Hydraulics Type: closed center pressure-compensating Pressure: 2500 psi 172.4 bar Valves: 3 Pump flow: 24 gpm 90.8 lpm *Advertised. Actual flow during testing was 21.8 GPM. Tractor hitch Rear Type: III/II Control: lower-link draft sensing Rear lift: 9900 lbs 4490 kg *Advertised. Actual tested lift capacity was 8172 pounds. Power Take-off (PTO) Rear PTO: independent Clutch: hydraulic wet disc Rear RPM: 1000 Dimensions & Tires Wheelbase: 115 inches 292 cm Weight: 18100 to 19405 pounds Front tire: 16.9R28 Rear tire: 20.8R38 Full dimensions and tires ... 9690 Serial Numbers Location: Console, right side 1994: 981001 1995: 981501 how to read serial numbers... Electrical Ground: negative Charging system: alternator Charging amps: 105 Batteries: 2 Battery CCA: 580 Battery volts: 12

AGCO Allis 9650	Power: 172 hp[P]	Date of manufacture : 1994 - 1995

AGCO Allis 9655	Power: 172 hp[P]	Date of manufacture : 1994 - 1998

AGCO Allis 9670	Power: 194 hp[P]	Date of manufacture : 1994 - 1995

AGCO Allis 9675	Power: 194 hp[P]	Date of manufacture : 1994 - 1998

AGCO Allis 9690	Power: 216 hp[P]	Date of manufacture : 1994 - 1995

AGCO Allis 9695	Power: 216 hp[P]	Date of manufacture : 1994 - 1998

AGCO Allis 9735	Power: 138 hp[P]	Date of manufacture : 1998 - 2001

AGCO Allis 9745	Power: 161 hp[P]	Date of manufacture : 1998 - 2001

AGCO Allis 9755	Power: 177 hp[P]	Date of manufacture : 1998 - 2001
