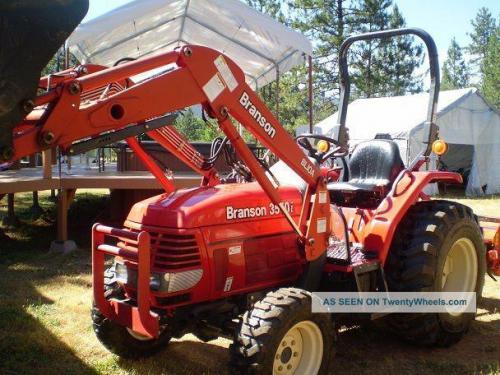

Branson 3510i Tractors

Branson 3510i
Power: 35 hp
Date of manufacture :
2005 - 2015
Production
Manufacturer:Branson
Variants
3510i:shuttle
3510h:hydrostatic
Branson 3510i Power
Engine (gross):35 hp
26.1 kW
Branson 3510i Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:ROPS. Canopy optional.
Transmission:12-speed synchronized shuttle
Hydraulics
Valves:0 to 2
Total flow:8.4 gpm
31.8 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):2,140 lbs
970 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Dimensions & Tires
Wheelbase:65 inches
165 cm
Weight:3,756 lbs
1703 kg
Full dimensions and tires ...
