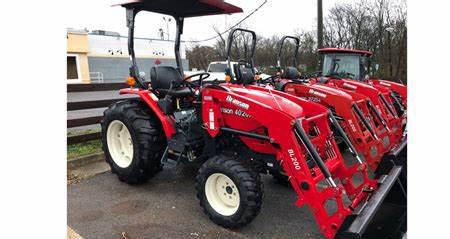

Branson 4020R Tractors

Branson 4020R
Power: 40 hp
Date of manufacture :
2011 - 2021
Production
Manufacturer:Branson
Type:Compact Utility tractor
Branson 4020R Power
Engine:40 hp
29.8 kW
PTO (claimed):35.5 hp
26.5 kW
Branson 4020R Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:12-speed syncro shuttle
Hydraulics
Type:open center
Mid valves:2
Pump flow:8.9 gpm
33.7 lpm
Steering flow:4.8 gpm
18.2 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:3306 lbs
1499 kg
Rear Arms:telescopic lower arms
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/790 (1.375)
Dimensions & Tires
Wheelbase:70.9 inches
180 cm
Weight:4063 lbs
1842 kg
Front tire:9.5x16
Rear tire:12.4x28
Electrical
Ground:negative
Battery volts:12
