Branson 4220 Tractors

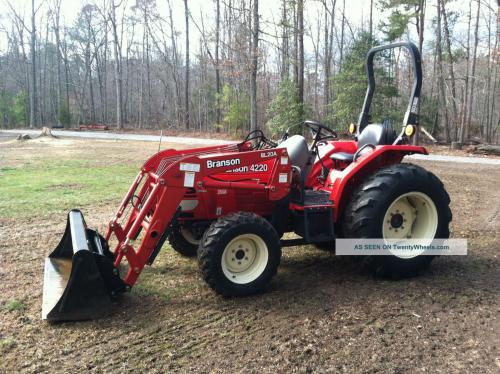

Branson 4220
Power: 42 hp
Date of manufacture :
2004 - 2005
Production
Manufacturer:Branson
Type:Compact Utility tractor
Factory:Yangsu-ri, South Korea
Branson 4220 Power
Engine:42 hp
31.3 kW
PTO (claimed):36 hp
26.8 kW
Branson 4220 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:12-speed synchromesh
Capacity
Fuel:11.1 gal
42.0 L
Hydraulic system:9.7 gal
36.7 L
Hydraulics
Type:open center
Capacity:9.7 gal
36.7 L
Valves:0 to 2
Pump flow:8.9 gpm
33.7 lpm
Total flow:13.2 gpm
50.0 lpm
Tractor hitch
Rear Type:I
Rear lift:2580 lbs
1170 kg
Power Take-off (PTO)
Rear PTO:live*2-stage clutch
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:69 inches
175 cm
Weight:3,795 lbs
1721 kg
Front tire:8-18
Rear tire:12.4-28
Electrical
Ground:negative
Charging system:alternator
Charging amps:45
Battery volts:12
