| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|

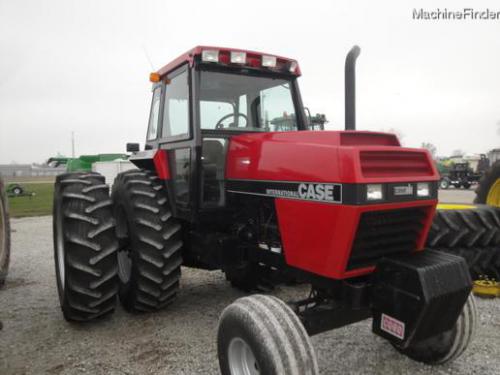

| CaseIH 2394 Power |
| Engine: | 197 hp
146.9 kW
|
| Drawbar (claimed): | 142 hp
105.9 kW
|
| PTO (claimed): | 160 hp
119.3 kW
|
| Drawbar (tested): | 137.78 hp
102.7 kW
|
| PTO (tested): | 162.15 hp
120.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Silent Guardian cab with air-conditioning.
|
| Transmissions: | 12-speed three-speed power shift
|
| | 24-speed four-speed power shift
|
| Capacity |
| Fuel: | 85 gal
321.7 L
|
| | 25 gal
94.6 L *Optional auxiliary tank
|
| Hydraulic system: | 32 gal
121.1 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 32 gal
121.1 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 27 gpm
102.2 lpm
|
| Steering flow: | 8 gpm
30.3 lpm
|
| Steering press.: | 2000 psi
137.9 bar
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift (at 24"/610mm): | 7,750 lbs
3515 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 118 inches
299 cm
|
| Weight: | 14270 to 16240 pounds
|
| Front tire: | 11.00x16
|
| Rear tire: | 18.4x38
|
| Full dimensions and tires ... |
| 2394 Serial Numbers |
| Location: | Inside cab or on right-front frame
|
| 1984: | 9931802
|
| 1985: | 9939020
|
| 1986: | 9941573
|
| 1987: | 9945454
|
| 1988: | 9948517
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 72
|
| | 105*Optional
|
| Battery volts: | 12
|
|
