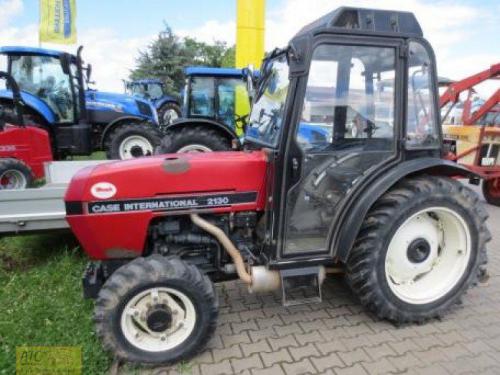

Power: 52 hp[P] Date of manufacture : 1988 - 1993
Production Distributor: CaseIH Manufacturer: Carraro Type: Orchard/Vineyard tractor Variants 2130V: vineyard 2130E: narrow CaseIH 2130 Power PTO (claimed): 47 hp 35.0 kW CaseIH 2130 Engine Mechanical Chassis: 4x2 2WD   4x4 MFWD 4WD Steering: hydrostatic power Brakes: wet disc Trailer brakes: hydraulic*Optional. Cab: Two-post forward-folding ROPS. Cab optional. Transmissions: 8-speed partially synchronized   12-speed partially synchronized Hydraulics Type: open center Valves: 1 or 2 Pump flow: 15.6 gpm 59.0 lpm Tractor hitch Rear Type: I/II Control: position and draft control 2130V Rear lift (at ends): 5575 lbs 2528 kg 2130E Rear lift (at ends): 5463 lbs 2478 kg Power Take-off (PTO) Rear PTO: independent Rear RPM: 540/750/1000 (1.375) Engine RPM: 540@2115 1000@2105 750@2015 Dimensions & Tires 2WD Wheelbase: 78 inches 198 cm 4WD Wheelbase: 76.6 inches 194 cm Weight: 4101 to 4542 pounds Front tire: 5.50-16 2130V 2WD Rear tire: 13.6R28 Full dimensions and tires ... 2130 Serial Numbers Location: Serial number plate on the right side of tractor's console. Electrical Ground: negative Charging system: alternator Charging amps: 55 Battery volts: 12 Battery AH: 100

CaseIH 1694	Power: 112 hp	Date of manufacture : 1985 - 1988

CaseIH 1896	Power: 105 hp[P]	Date of manufacture : 1985 - 1989

CaseIH 2096	Power: 128 hp[P]	Date of manufacture : 1985 - 1989

CaseIH 2120	Power: 44 hp[P]	Date of manufacture : 1988 - 1993

CaseIH 2130	Power: 52 hp[P]	Date of manufacture : 1988 - 1993

CaseIH 2140	Power: 61 hp[P]	Date of manufacture : 1988 - 1993

CaseIH 2150	Power: 71 hp[P]	Date of manufacture : 1988 - 1993

CaseIH 2294	Power: 154 hp	Date of manufacture : 1984 - 1988

CaseIH 2394	Power: 197 hp	Date of manufacture : 1984 - 1988
