CaseIH 7220 Tractors

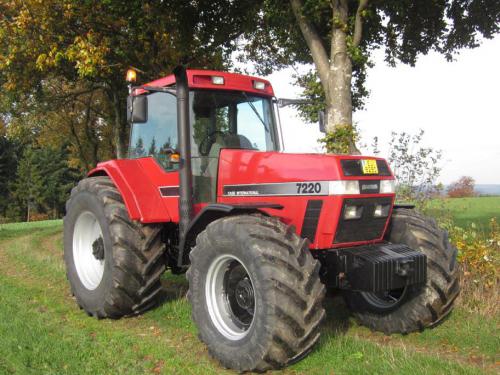

CaseIH 7220
Power: 172 hp[P]
Date of manufacture :
1994 - 1996
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$75,100 (1996 )
CaseIH 7220 Power
PTO (claimed):155 hp
115.6 kW
Drawbar (tested):132.79 hp
99.0 kW
PTO (tested):168.56 hp
125.7 kW
CaseIH 7220 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electric rear
Steering:power
Brakes:differential hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:18-speed full power shift
 24-speed creeper
Photos
CaseIH 7220 photos...
Capacity
Fuel:78 gal
295.2 L
 95 gal
359.6 L *Optional
Hydraulic system:45.5 gal
172.2 L
Hydraulics
Type:closed center pressure flow compensated (PFC)
Capacity:45.5 gal
172.2 L
Pressure:2300 psi
158.6 bar
Valves:2 to 4
SCV flow:22 gpm
83.3 lpm
Total flow:29 gpm
109.8 lpm
Tractor hitch
Rear Type:III/IIIN
Control:electronic lower-link draft sensing
Rear lift:8300 lbs
3764 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000 (dual-shaft 1.375)
Dimensions & Tires
Wheelbase:118.3 inches
300 cm
Weight:15630 to 17418 pounds
Front tire:11.00-16
Rear tire:18.4R-38
Full dimensions and tires ...
7220 Serial Numbers
Location:Serial number plate on the dash console inside tractor cab, near the floor.
1994:JJA0050001
1995:JJA0056459
1996:JJA0064978

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:110
Charging volts:12
Batteries:2
Battery CCA:950
Battery volts:12
