| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $112,000 (1996 )
|
| CaseIH 7250 Power |
| PTO (claimed): | 215 hp
160.3 kW
|
| Drawbar (tested): | 187.40 hp
139.7 kW
|
| PTO (tested): | 242.97 hp
181.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electric rear
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 18-speed full power shift
|
| | 24-speed creeper
|
| Photos |

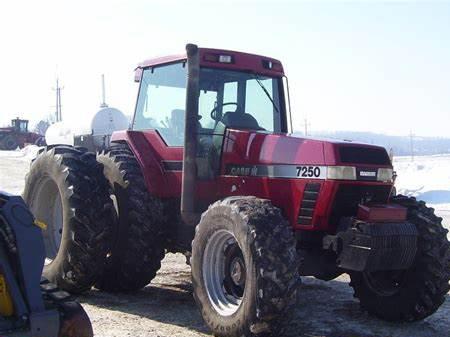

| | CaseIH 7250 photos... |
| Capacity |
| Fuel: | 95 gal
359.6 L
|
| Hydraulic system: | 45.5 gal
172.2 L
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Capacity: | 45.5 gal
172.2 L
|
| Pressure: | 2300 psi
158.6 bar
|
| Valves: | 3 or 4
|
| SCV flow: | 22 gpm
83.3 lpm
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | electronic lower-link draft sensing
|
| Rear lift: | 14950 lbs
6781 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 17445 to 18140 pounds
|
| Front tire: | 16.9-28
|
| Rear tire: | 20.8R-38
|
| Full dimensions and tires ... |
| 7250 Serial Numbers |
| Location: | Serial number plate on the dash console inside tractor cab, near the floor.
|
| 1994: | JJA0050001
|
| 1995: | JJA0056459
|
| 1996: | JJA0064978
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 110
|
| Charging volts: | 12
|
| Batteries: | 2
|
| Battery CCA: | 950
|
| Battery volts: | 12
|
|
