Navigation: Home > CaseIH > CS 130

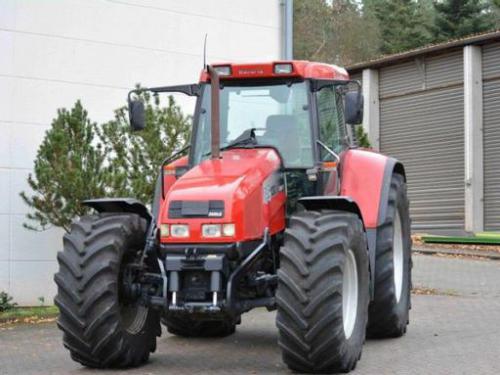

CaseIH CS 130 Tractors

CaseIH CS 130
Power: 123 hp
Date of manufacture :
1997 - 2003
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Saint Valentin, Austria
Variants
Steyr 9125
CaseIH CS 130 Power
Engine (net):123.3 hp
91.9 kW
PTO (claimed):110.5 hp
82.4 kW
CaseIH CS 130 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:24-speed four-speed power shift
 40-speed creeper
Hydraulics
Pressure:2683 psi
185.0 bar
Pump flow:21.1 gpm
79.9 lpm
 30.4 gpm
115.1 lpm *Optional
Tractor hitch
Rear Type:III
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2200
540E@1680
1000@2200
1000E@1600
Front RPM:1000
Dimensions & Tires
Wheelbase:110.6 inches
280 cm
Weight:11607 lbs
5264 kg
Front tire:480/70R28
Rear tire:580/70R38
Full dimensions and tires ...
