CaseIH CS 86 Tractors

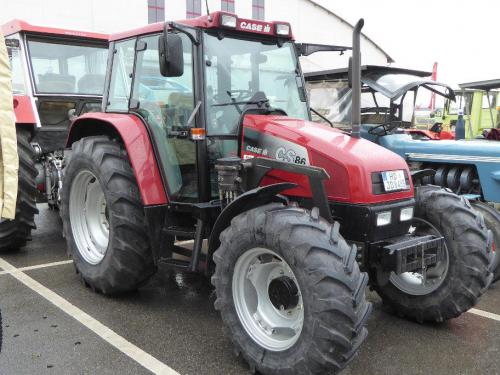

CaseIH CS 86
Power: 86 hp
Date of manufacture :
1995 - 2003
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH CS 86 Power
Engine:86 hp
64.1 kW
PTO (claimed):78.9 hp
58.8 kW
CaseIH CS 86 Engines
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:disc
Cab:Cab standard.
Transmissions:16-speed synchronized
 16-speed two-speed power shift
 32-speed creeper
Photos
CaseIH CS 86 photos...
Hydraulics
Total flow:13.2 gpm
50.0 lpm
 22.2 gpm
84.0 lpm *Optional
Tractor hitch
Rear Type:II
Rear lift:10804.5 lbs
4900 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:430@2130
540@2046
540E@1506
1000@2130
Front PTO:independent
Front RPM:1000
Dimensions & Tires
Wheelbase:97.6 inches
247 cm
Weight:8708 lbs
3949 kg
Front tire:14.9R24
Rear tire:18.4R34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
