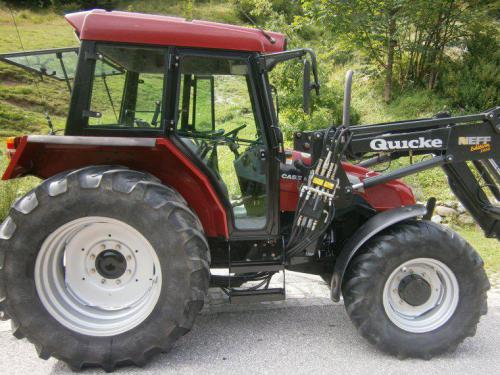

CaseIH CS 68 Tractors

CaseIH CS 68
Power: 68 hp
Date of manufacture :
1994 - 2004
Production
Manufacturer:CaseIH
Type:Utility tractor
Variants
CS68:2WD
CaseIH CS 68 Power
Engine:68 hp
50.7 kW
PTO (claimed):64.4 hp
48.0 kW
CaseIH CS 68 Engines
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:disc
Cab:Cab standard.
Transmission:16-speed synchronized
Hydraulics
Total flow:11.4 gpm
43.1 lpm
Tractor hitch
Rear Type:II
Rear lift:5755 lbs
2610 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:430/540/1000
Engine RPM:430@2130
540@2045
540E@1506
1000@2130
Front PTO:independent
Front RPM:1000
Dimensions & Tires
Wheelbase:87.8 inches
223 cm
Weight:6217 to 6834 pounds
Front tire:7.50-18
2WD Rear tire:13.6R36
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
