CaseIH CX60 Tractors

CaseIH CX60
Power: 64 hp
Date of manufacture :
1998 - 2002
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$26,000 (1999)
Variants
CX60:deluxe model
C60:basic model
CaseIH CX60 Power
Engine (gross):64 hp
47.7 kW
Engine (net):60 hp
44.7 kW
PTO (claimed):50 hp
37.3 kW
Drawbar (tested):48.4 hp
36.1 kW
PTO (tested):56.5 hp
42.1 kW
CaseIH CX60 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:electro-hydraulic
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Two-post ROPS with flat platform. Optional cab with air-conditioning.
Transmissions:8-speed synchro shuttle
 16-speed partial power shift
 24-speed creeper

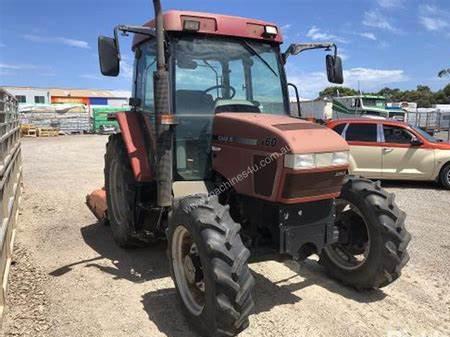

Photos
CaseIH CX60 photos...
Capacity
Fuel:42 gal
159.0 L
Hydraulic system:9.1 gal
34.4 L (2WD)
 9.8 gal
37.1 L (4WD)
Hydraulics
Type:open center
Capacity:9.1 gal
34.4 L (2WD)
 9.8 gal
37.1 L (4WD)
Pressure:2500 psi
172.4 bar
Valves:0 to 3
Pump flow:13.7 gpm
51.9 lpm
Total flow:22.2 gpm
84.0 lpm (total)
 13.7 gpm
51.9 lpm (main pump)
 8.5 gpm
32.2 lpm (lube pump)
Tractor hitch
Rear Type:II/I
Control:electronic upper link
Rear lift:3,665 lbs
1662 kg
 5,097 lbs
2311 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540
 540/1000 (optional dual shaft)
Dimensions & Tires
Wheelbase:84.8 inches
215 cm (2WD)
 87.2 inches
221 cm (4WD)
Weight:7286 to 7970 pounds
Front tire:7.50-16
Rear tire:14.9-28
Full dimensions and tires ...
CX60 Serial Numbers
Location:Near the tractor steering column on right side.
1998:JJE1000056
1999:JJE1008492
2000:JJE1013490
2001:JJE1017672
2002:JJE1019985

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:65
Battery CCA:650
 810 (optional)
Battery volts:12
