CaseIH DX25E Tractors

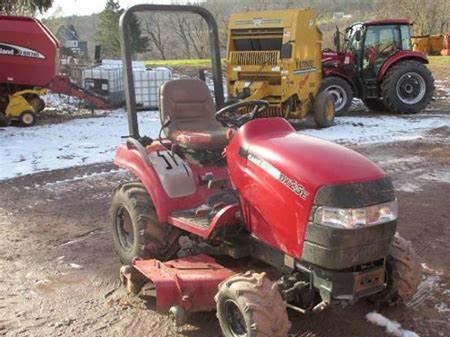

CaseIH DX25E
Power: 25 hp
Date of manufacture :
2005 - 2007
Production
Manufacturer:CaseIH
Type:Sub-Compact Utility tractor
CaseIH DX25E Power
Engine:25 hp
18.6 kW
PTO (claimed):19 hp
14.2 kW
CaseIH DX25E Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Cab:Two-post ROPS.
Transmission:hydrostatic
Photos
CaseIH DX25E photos...
Hydraulics
Type:open center
Pump flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Rear lift:700 lbs
317 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:55 inches
139 cm
Weight:1323 lbs
600 kg
Electrical
Ground:negative
Battery volts:12
